OPK-3.5CB
3.5T Scissor lift
Min height is 110mm.Using two sets of cylinders ensures lift synchronization and safety.The electrical control is powered by a 24V safe voltage, ensuring operational safety.
1. On Ground Installation, 3500kgs Lifting Capacity ,Min height is 110mm. 2. All The Seal Kits Of Cylinder Are Import From Italy ,The Cylinder Import From Taiwan. 3. Extendable Platform For Two Or Single Side Optional,Service For More Cars. 4. Inside Of Cylinder Assy Has The Special Treatment And Make Sure That Is Doesn'T T Leak Oil. 5. 24v Control System And Limited Switch. 6. While Switch Is Addedary,It Is Controlled Long Distantly. 7. Ce Tested,120% Dynamic Loading Test And 150% Static Loading Test.

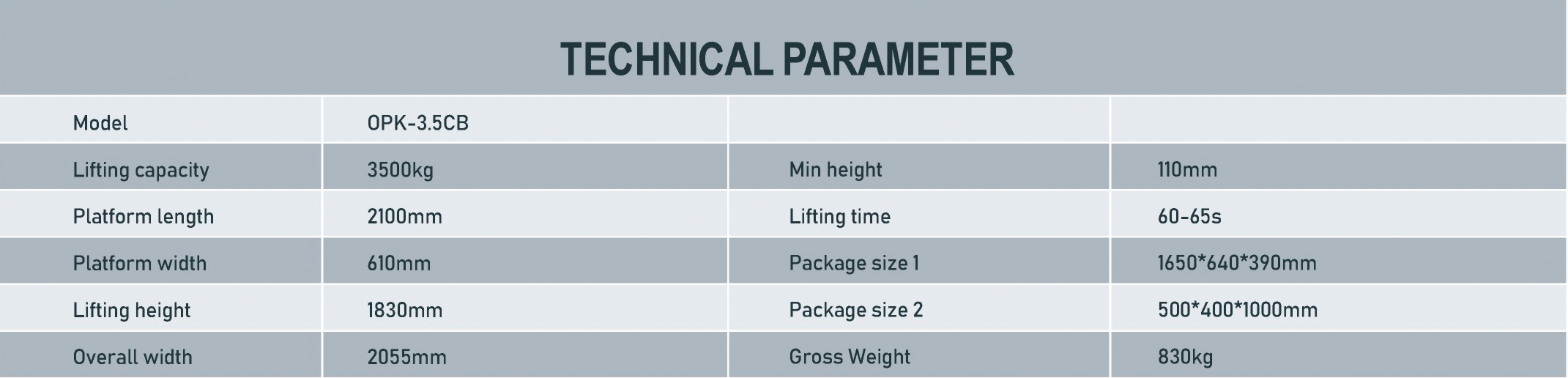

Product Technical Parameters

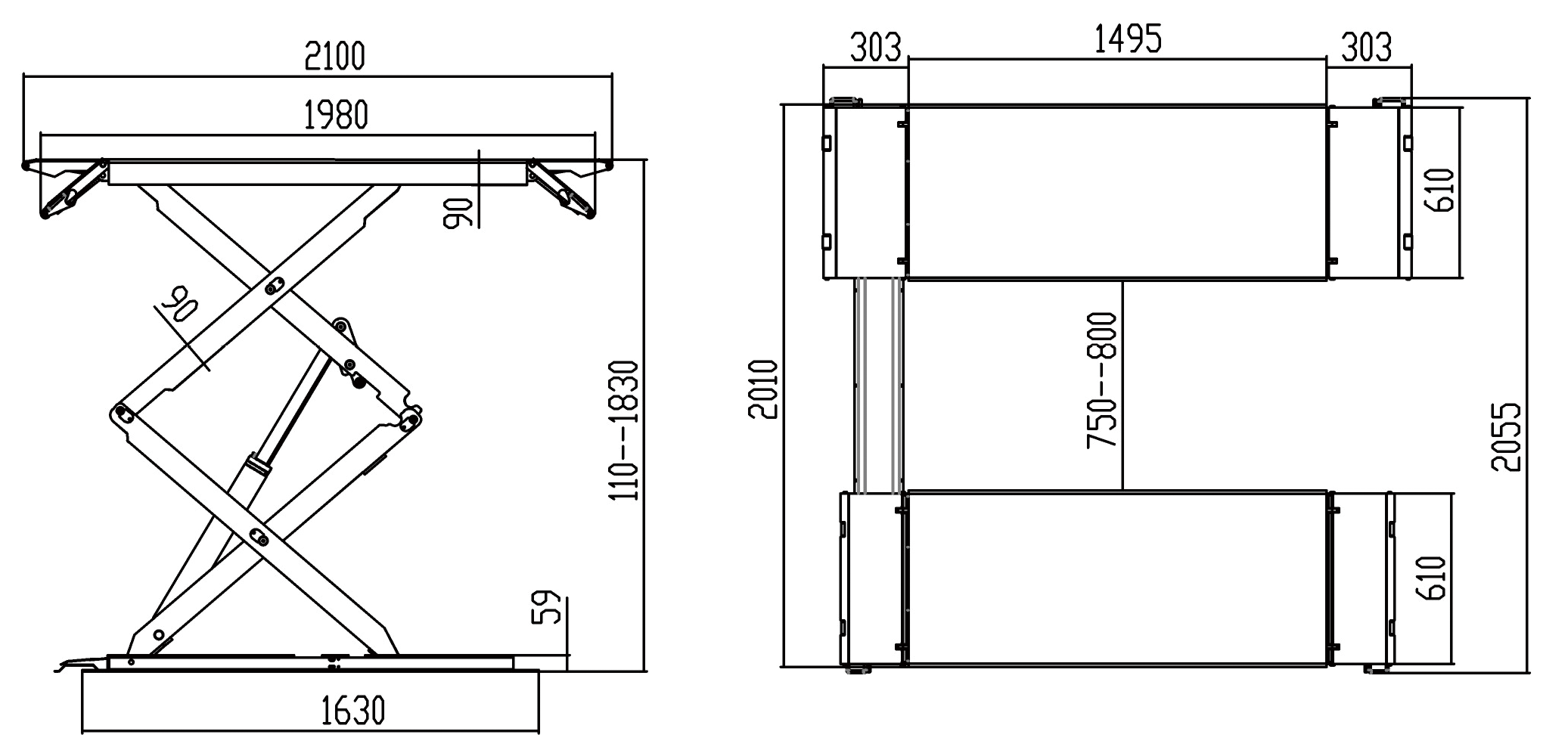

Outline dimension drawing of product

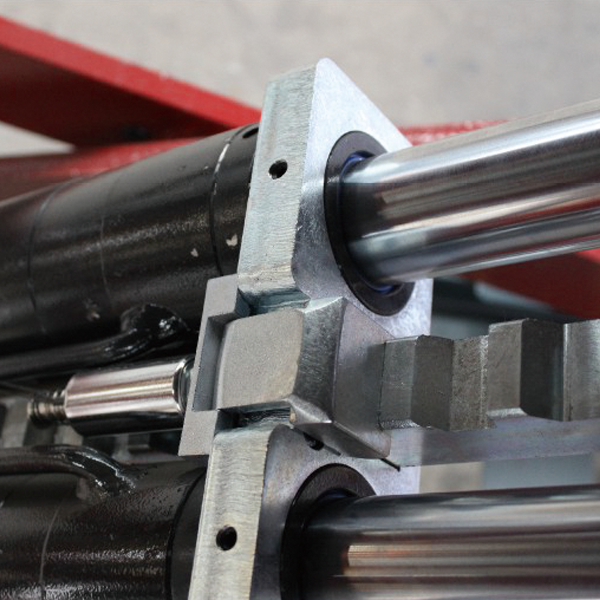

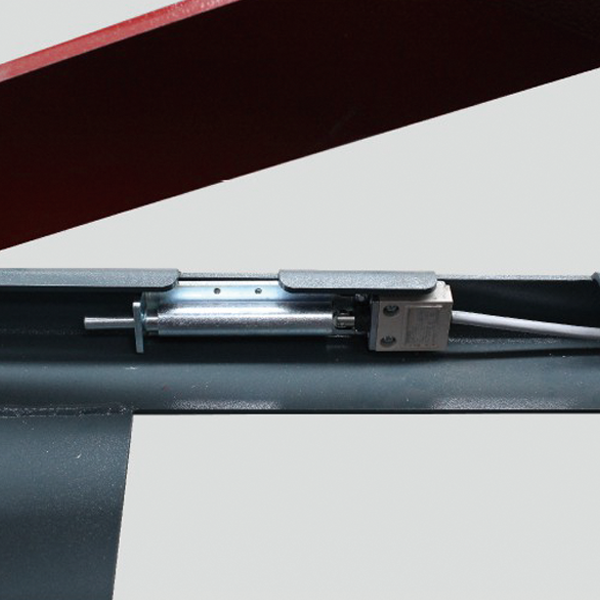

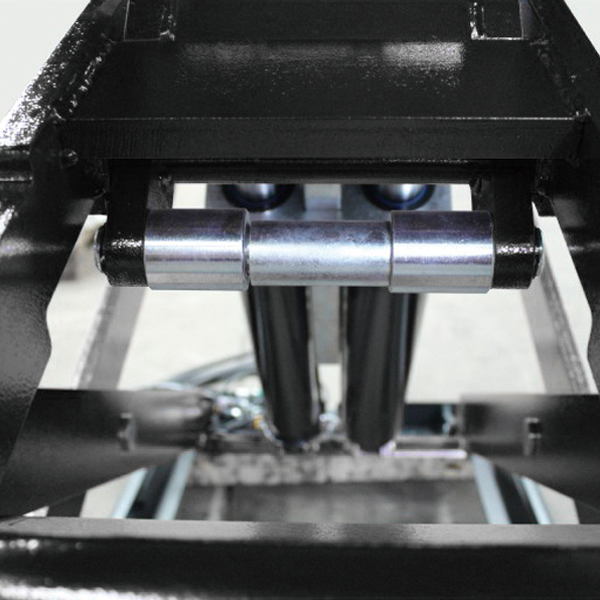

Description of product details and features
